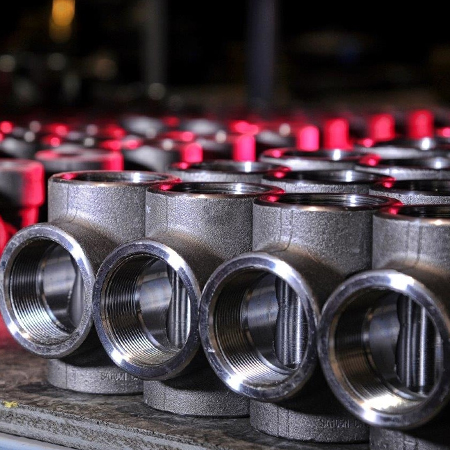

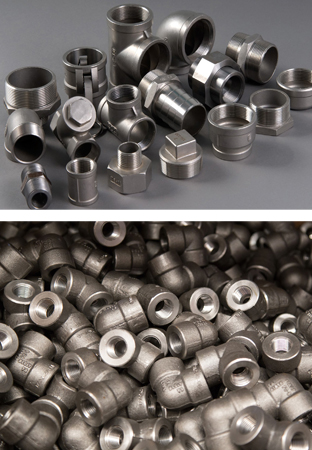

Forged Fittings
We are one of the leading Suppliers of Forged Fittings in different shapes and sizes and with different specifications as per the customers’ requirement. These Forged Socket weld & Threaded Fittings are characterized by high durability, resistance to corrosion, flawless finish and complete reliability in service. Our complete range is stringently tested by our well equipped testing unit, to ensure their compliance with international quality norms. These Forged Fittings are used in various industries like Oil & gas, Petrochemical, Pharmaceutical, Fertilizers, Construction, Food, Power and Instrumentation.
© Copyright 2018| SHREE SWANGIYA METAL INDUSTRIES. All Right Reserved Developed By RATH INFOTECH | pipingmart.com
Stainless Steel Forged Fittings Specification
Size : 1/2"NB to 4"NB IN
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Specifications : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Form : 45 deg Elbow, 90 deg Elbow, Tee, Cross, Coupling, Half Coupling, Cap, Hex Nipple etc.
Stainless Steel : ASTM / ASME SA 182 F 202, 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H, 904L
Carbon & Alloy Steel Forged Fittings Specification
Size : ½”NB to 48″NB in
Carbon Steel : ASTM A105 / A694 / A350 LF3 / A350 F42 / F46 / F52 / F56 / F60 / F65 / F70, LF2. , A420 WPL3 / A420 WPL6
Alloy Steel : ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91.
Inconel Forged Fittings Specification
Size : 1/8" TO 4"
Inconel : ASTM / ASME SB 564 Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750, Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286
Monel Forged Fittings Specification
Range : 1/8" TO 4"
Monel : ASTM / ASME SB 564 Monel 400 (N04400), Monel 500 (N05500)
Hastelloy Forged Fittings Specification
Range : 1/8" TO 4"
Hastelloy : ASTM / ASME SB 564 Hastelloy C22, Hastelloy C276, Hastelloy C4, Hastelloy B, Hastelloy C-2000
Cupro Nickel Alloy Forged Fittings Specification
Range : ½”NB to 24”NB in
Cupro Nickel Alloy : UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200.
Nickel Alloy Forged Fittings Specification
Range : 1/2"NB TO 4"NB IN
Nickel Alloy : ASTM / ASME SB 564 Nickel 200 (N02200), Nickel 201 (N02201), Nickel 205 (N02205)
Duplex Steel Forged Fittings Specification
Range : 1/2"NB TO 4"NB IN
Duplex Steel : ASTM A182 / ASME SA182 F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61.
Super Duplex Steel Forged Fittings Specification
Size : 1/2"NB TO 4"NB IN(Socketweld & Screwed-Threaded)
Super Duplex Steel : ASTM A182 / ASME SA182 UNS NO. S32750 / S32760 / S32950
Titanium Alloy Forged Fittings Specification
Range : 15NB TO 100 NB (DN6~DN100)
Titanium Grades: ASTM B351 Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr11,Gr12,Gr23
